LED CLEANROOM MOUNTING PANEL LIGHT

Mô tả sản phẩm:

LED Cleanromm mounting panel light is a high-quality lighting device from Pi Power Solutions, specialized for lighting environments with strict requirements such as laboratories, cold rooms, food manufacturing plants, etc. With high luminous efficiency, ultra-thin design, long service life up to 50,000 operating hours, LED Cleanromm mounting panel light is the perfect choice for installation in specialized areas. Products are genuine warranty by Pi Power Solutions (1 for 1 exchange) within 3 years.

Mã Model: PP-CPL-M3030-20; PP-CPL-M3060-24; PP-CPL-M6060-50; PP-CPL-M30120-50

Contact for Price

  • INFORMATION
  • PRODUCT DIMENSIONS
  • DOWNLOAD DOCUMENT

Special features

  • Resistant to H2O2 and does not degrade
  • Lighting weight by advanced back-lit LED technology
  • Bevel edge frame design
  • Suitable for sandwich panel, gypsum, and concrete ceilings
  • Slim IP20 driver housed inside back frame for easy installation

Application

  • Medical & Health
  • Pharmaceutical
  • Electronics
  • Cosmetic
  • Biotech
  • Optics
  • Food & Beverage Factory

Dimension and Specification

Model number PP-CPL-M3030-20 PP-CPL-M3060-24 PP-CPL-M6060-50 PP-CPL-M30120-50
Dimension 595x295x100 mm 595x595x100 mm 1195x295x100 mm 1200x300x25 mm
Power 20W 24W 50W 50W
Luminous flux 2400 lm 2880 lm 6000 lm 6000 lm
Luminous efficacy 120 lm/W
Color rendering index Ra  ≥ 80
Beam angle 110º
Working tempurature -20ºC - 45ºC
Color temperature 3000K/4000K/5700K/6000K/6500K
Power factor > 0.9
Input Voltage 200 - 240 VAC
Ingress protection IP54
Lifespan 50.000 hrs



Download product IES file here.

LED Cleanroom Mounting Panel PP-CPL-M30120-50 5000lm

LED Cleanroom Mounting Panel PP-CPL-M30120-50 6000lm

LED Cleanroom Mounting Panel PP-CPL-M30120-50 9000lm



Thông số kỹ thuật

Dimension (mm): 300*300*25, 300*600*25, 615*615*25, 1200*300*25

Power (W): 20W, 24W, 50W, 50W

Luminous Flux (lm): 2400lm, 2880lm, 6000lm

Luminous efficacy (lm/W): 120lm/W

Color Renderung Index: >80 Ra

Beam Angle: 110°

Working Temperature: - 20°C - 45°C

Color Temperature (K): 3000K/4000K/5700K/6000K/6500K

Power Factor: > 0.9

Input Voltage: 200 - 240 VAC

Ingress Protection: IP54

Lifespan: 50.000 Hr

Other products

LED CLEANROOM MOUNTING PANEL LIGHT (SLIM VERSION)

LED CLEANROOM MOUNTING PANEL LIGHT (SLIM VERSION)

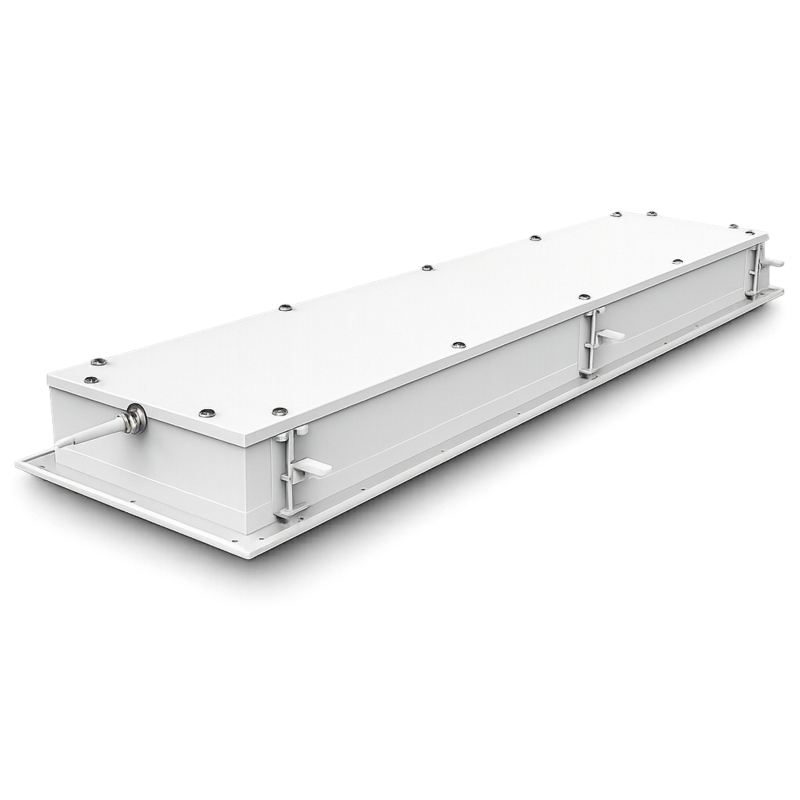

CLEANROOM LED RECESSED TOP-OPEN GMP PANEL LIGHT

CLEANROOM LED RECESSED TOP-OPEN GMP PANEL LIGHT

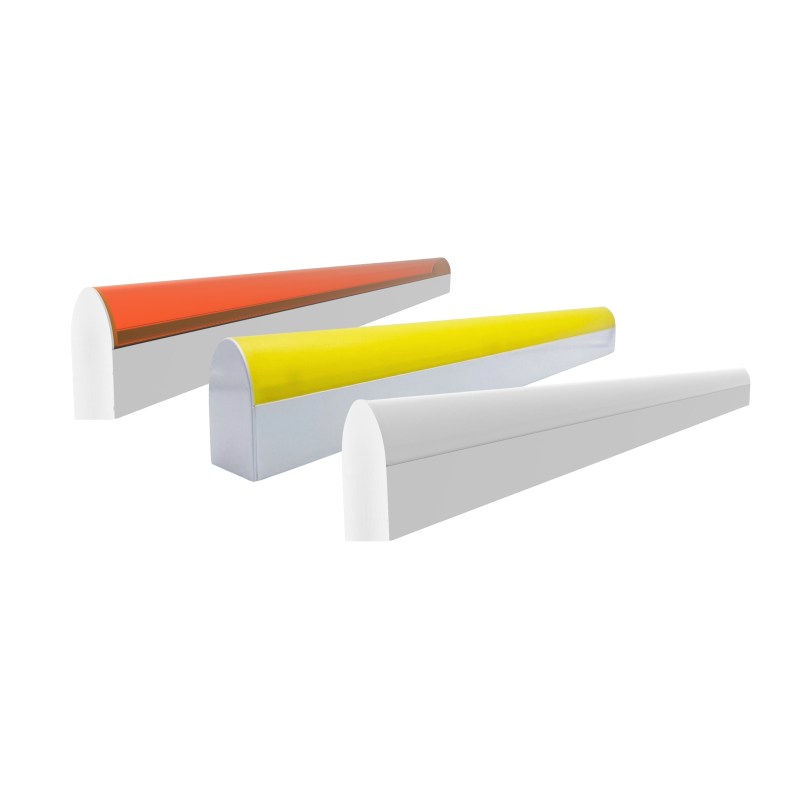

SLIM TEAR-DROP LED LIGHT
