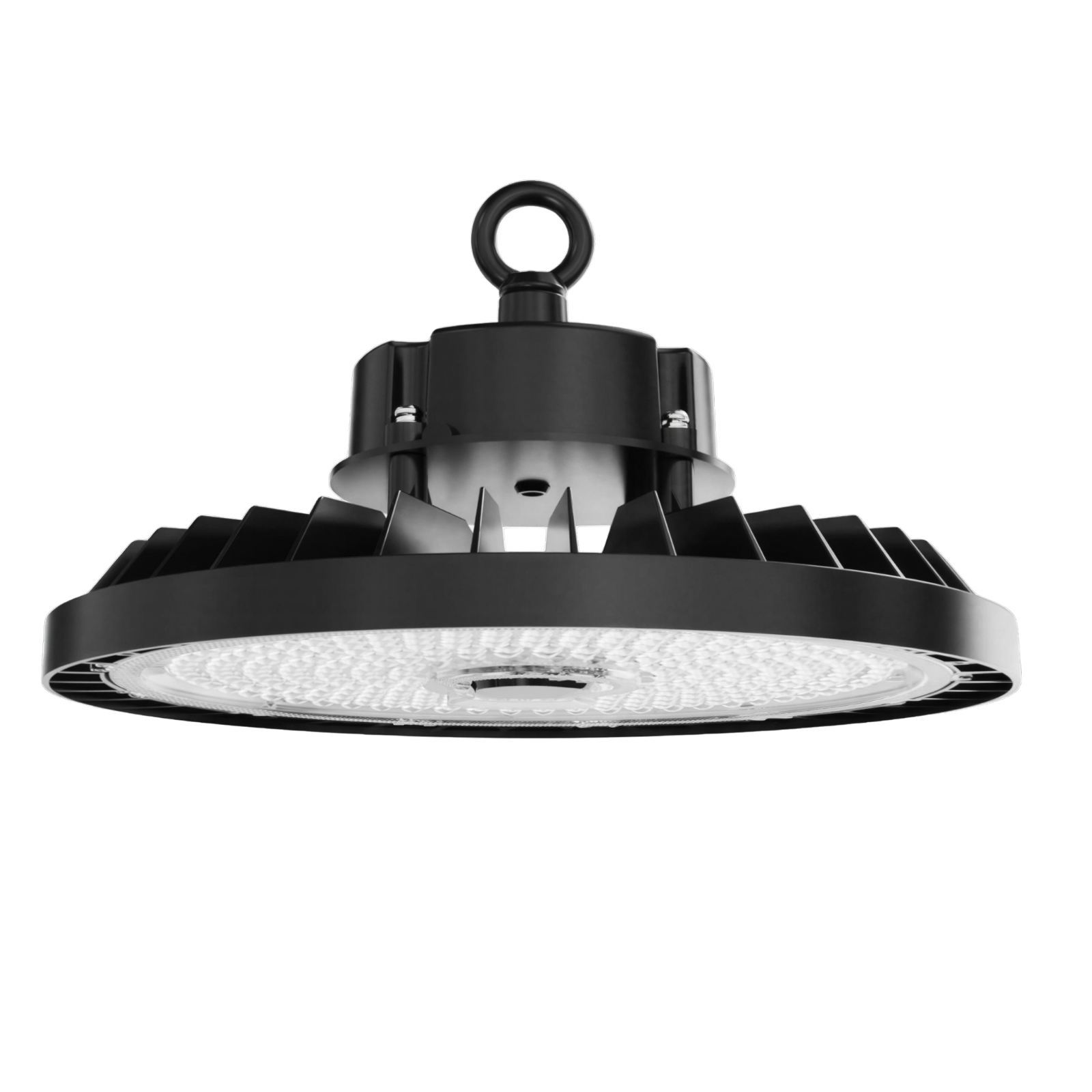

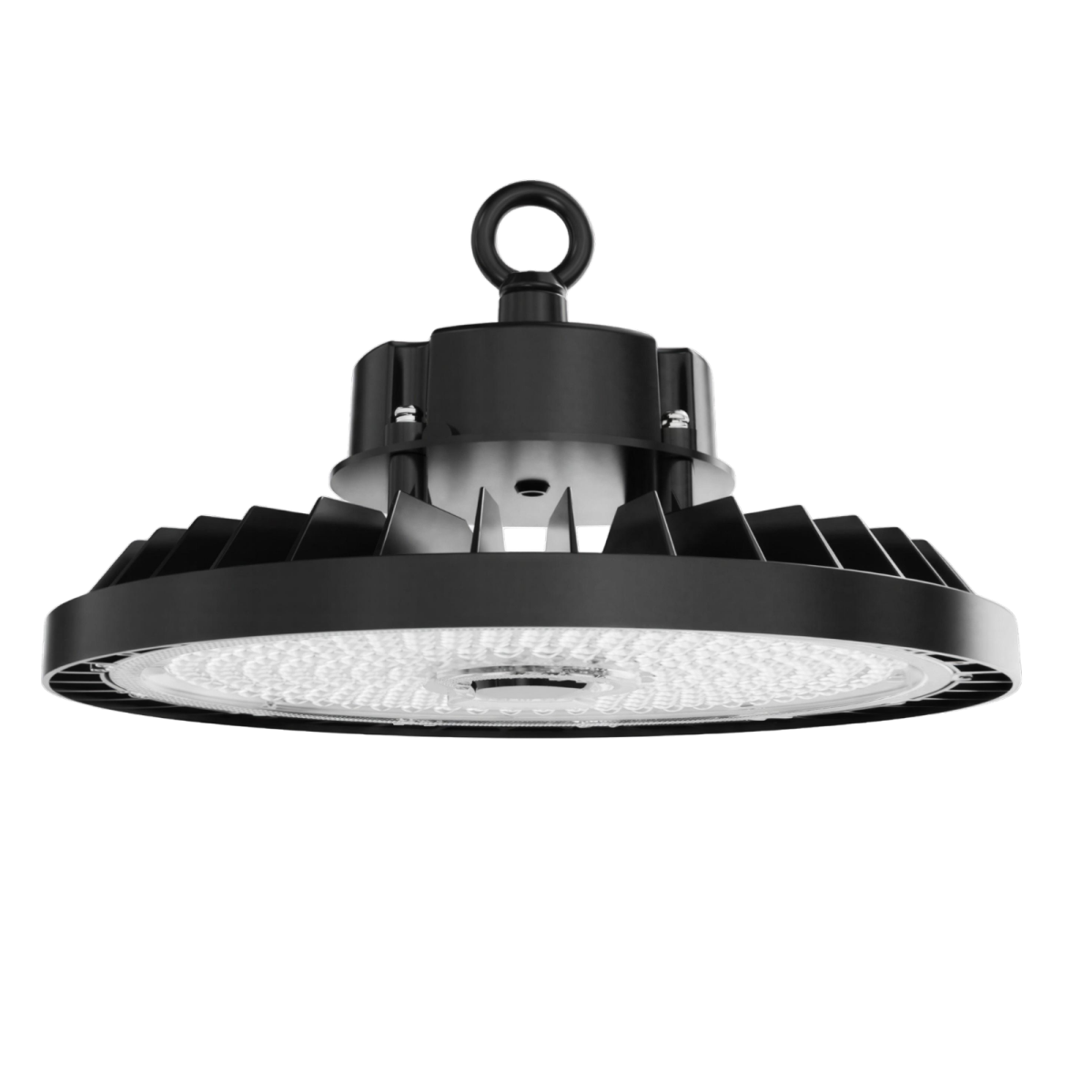

COLD STORAGE DSC-TYPE HIGHBAY LIGHT

  • PP-HB-DCS_3
  • PP-HB-DSC_2
  • 4
  • 3

COLD STORAGE DSC-TYPE HIGHBAY LIGHT

Mô tả sản phẩm:

Cold Storage DSC-Type Highbay Light is a high-quality lighting device from Pi Power Solutions with outstanding features, specialized for use in factories. With high efficiency up to 150lm/W, lifespan up to 50,000 hours. DSC-Type Highbay Lights are the optimal solution to replace traditional high-pressure lights. The product is officially warranted by Pi Power Solutions (1 for 1 exchange) for 1 to 2 years.

In addition, the product has MWS, PIR and Dimming sensors (optional) to suit the brightness needs of each area. DSC-Type Highbay Light is designed to be compact, lightweight and has IK10, IP66 index for the lens.

Mã Model: PP-HB-DSC100; PP-HB-DSC150; PP-HB-DSC200

Contact for Price

  • INFORMATION
  • PRODUCT DIMENSIONS
  • DOWNLOAD DOCUMENT

Special features:

  • 6 kV surge protection
  • Suitable for cold storage down to - 30°C
  • Professional anti-glare design
  • Uses high luminous efficacy 150 lm/W LED chips
  • Smart Microwave sensor/Zhaga based (optional) comaptible with light sensor, dimming, Bluetooth, Zigbee
  • Integrated pressure equalization breating valve

Application

  • Factory
  • Warehouse

Dimension and specification

Model number PP-HB-DSC100 PP-HB-DSC150 PP-HB-DSC200
Dimension D246x115 mm D226x120 mm D298x129 mm
Power 100 W 150 W 200 W
Luminous flux 15000 lm 22500 lm 30000 lm
Luminous efficacy 150 lm/W
Color rendering index Ra ≥ 80
Beam angle 120º
Working temperature - 40ºC - 45ºC
Color temperature 5700K/6000K/6500K
Power factor ≥ 0.9
Input Voltage 120 - 277 VAC
Ingress protection IP65
Lifespan 50.000 Hrs



Download product IES file here.

Cold storage DSC-Type Highbay light-100

Cold storage DSC-Type Highbay light-150

Cold storage DSC-Type Highbay light- 200







Thông số kỹ thuật

Dimension (mm): Ø246*(H)115; Ø266*(H)120; Ø298*(H)129

Power: 100W; 150W; 200W

Luminious flux: 15000 lm; 22500 lm; 30000 lm

Luminious efficiency: 150 lm/W

Color temperature (K): 5700K/6000K/6500K

CRI: Ra ≥ 80

Beam Angle: 120°

Working temperature: - 40°C - 50°C

Power Factor: ≥ 0.9

Input Voltage: 120V - 277V

Ingress protection: IP65

Lifespan: 50.000 hrs
